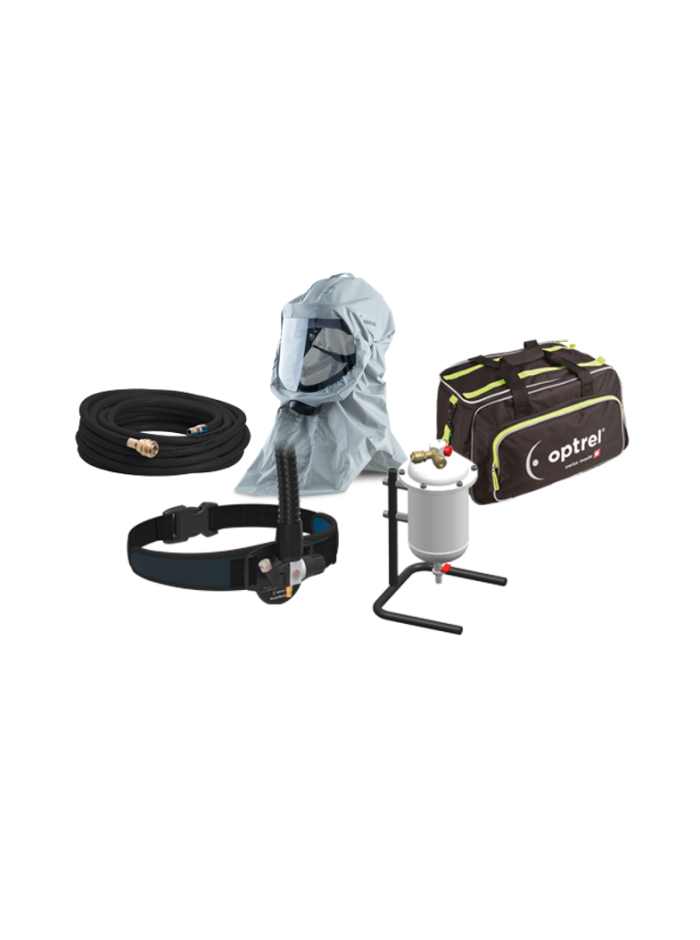

Optrel suppliedair complete  system

Breathing protection system with compressed air supply.

When working in toxic environments, in closed rooms or in extremely cramped situations, such as in boiler or vessel construction, a sufficient supply of clean fresh air is essential.

The optrel suppliedair system forms the interface between the compressed aircarrying case air vessel and the fresh air helmet. It ensures a sufficient and regulated supply of fresh air and warns you with its integrated alarm of deviations in the target air volume.

With the use of Optrel fresh air PAPR helmets have a continuously adjustable rotary switch that lets you route up to 20% of the air to the forehead area for additional cooling.

Key Features:

• Comfort Belt - An individually adjustable belt with quick-release fastener ensures a comfortable fit and ideal support of the system on the body
• Air Filter - An additional air filter provides the user maximum with safety. It prevents the penetration of foreign bodies and impurities into the clean compressed air and thus into the fresh air helmet.
• Great Connectivity - Two different connection nipples are available for connection to all common compressed air systems.
• Individual adjustable air control distribution -This avoids a direct draught over the eyes and the dehydration of the eyes associated with it.

• Air filtration control.
• Air control suppliedair belt & regulator.
• Pressure hose antistatic 10 metre.
• Soft hood (PAPR).
• Flexible air hose.
• Bag - Black/Green

Ideal for:

• Welding
• Plasma cutting
• Grinding applications
• Gouging
• Metal working
• Foodstuffs industry
• Paint shops
• Chemical industry

Technical information:

• Air flow 160 to 250 nL/min
• Minimum flow rate 160 nL/min
• Pressure range 4 to 10 bar
• Weight 280 g
• Noise level 61 dB
• Operating temperature +10°C to +60°C
• Humidity range 20% to 80% RH
• Belt size 60 to 150 cm
• Audible alarm in case of pressure loss
