Optrel

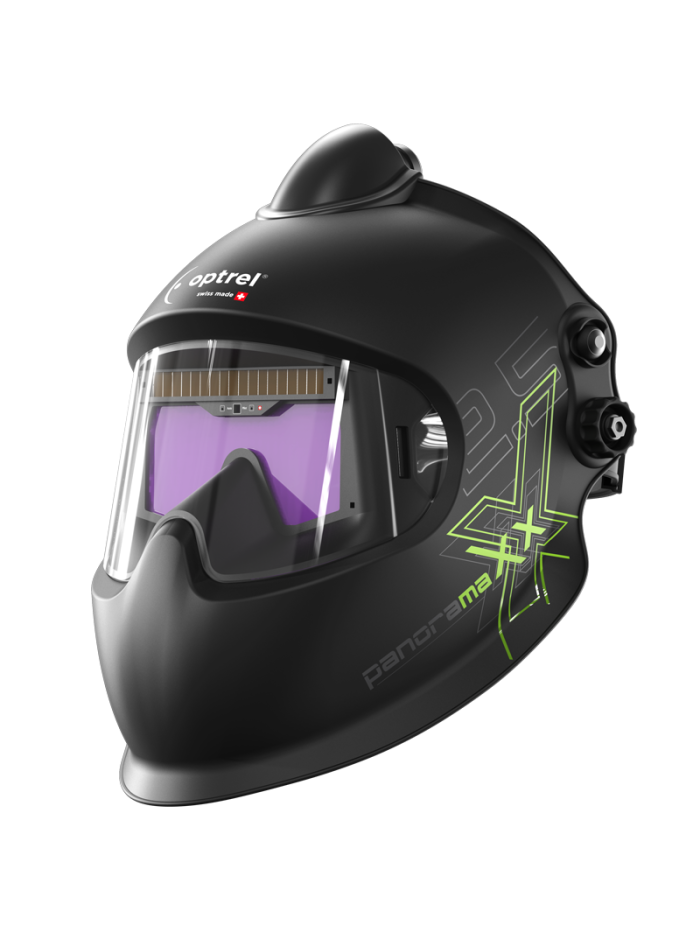

Panoramaxx Auto Darkening Welding Helmet Shade 5 - 12 PAPR Helmet (PAPR System not included)
£495.00Exc. VAT
Model: 4441.660
Product Description
Maxximize your horizon.
All innovations in one product.
optrel's think tank has dealt intensely with the topic of how to expand the field of vision and is now in a position to introduce an uncompromising solution. Thanks to the unique glare protection cartridge with a nose cut-out, the display – which is optimal from an ergonomic perspective – is positioned closer to the eye and thus enlarges the field of vision six-fold in comparison to conventional welding masks without adding to the weight.
The panorama view in connection with the 2.5 brightness level – as well as the detailed colour rendering – makes it possible for the welder to experience an entirely new visual dimension.
The panoramaxx features the patented optrel auto-pilot function. This is based on a unique sensor concept that measures the brightness of the welding arc and then automatically adjusts the correct blackness value of the glare protection cartridge.
With panoramaxx, optrel also embarks on a new era with regards to energy supplies. Featuring a high-performance solar cell and a lithium-polymer energy pack that can be recharged with a USB- cable, the panoramaxx is fast becoming the energy-independent, maintenance-free welding helmet for professional users.
The panoramaxx combines the latest optrel innovations of the most recent product ranges with an unprecedented panorama view – the most advanced welding helmet of its time.
Fields of Application
Technical Data
All innovations in one product.
optrel's think tank has dealt intensely with the topic of how to expand the field of vision and is now in a position to introduce an uncompromising solution. Thanks to the unique glare protection cartridge with a nose cut-out, the display – which is optimal from an ergonomic perspective – is positioned closer to the eye and thus enlarges the field of vision six-fold in comparison to conventional welding masks without adding to the weight.
The panorama view in connection with the 2.5 brightness level – as well as the detailed colour rendering – makes it possible for the welder to experience an entirely new visual dimension.
The panoramaxx features the patented optrel auto-pilot function. This is based on a unique sensor concept that measures the brightness of the welding arc and then automatically adjusts the correct blackness value of the glare protection cartridge.
With panoramaxx, optrel also embarks on a new era with regards to energy supplies. Featuring a high-performance solar cell and a lithium-polymer energy pack that can be recharged with a USB- cable, the panoramaxx is fast becoming the energy-independent, maintenance-free welding helmet for professional users.
The panoramaxx combines the latest optrel innovations of the most recent product ranges with an unprecedented panorama view – the most advanced welding helmet of its time.
Fields of Application
- Elektrode Welding (Stick Welding, SMAW)
- MIG/MAG (GMAW)
- GMAW High melting rate process
- Flux Cored Wire Welding
- TIG Welding (GTAW)
- Plasma Arc Welding
- Plasma Cutting
- Gas Welding
- Grind Mode
Technical Data
- Shade levels: inactive: shade level 2,5 active, manual: shade level 7-12
- Autopilot: Automatic protection level regulation across a range from 5-12 with individual calibration option of ± 2
- Power supply: Solar cells, lithium-polymer battery, rechargeable by USB-cable
- Battery life: 300 to 500 charging cycles
- Sensors: Five Sensors
- Sensitivity: Infinitely adjustable, now with “super high” sensitivity
- Switching time: bright to dark: 0.090 ms at room temperature at 55°C 0.070 ms at 55°C dark to bright: 0.1 s to 2.0 s (with dimming function)
- Field of vision: Depending on headband setting, 2.3x to 6.3x field of vision of a 100 x 50 mm standard industry ADF
- EN379 class: ificationOptical class: 1 - Scattered light: 1 - Homogeneity: 1 - Angular dependence: 2
- Shape stability: Welding mask: up to 220 °C / 428 °F
- Front cover lens: up to 137 °C / 279 °F
- Eye protection: Ultraviolet / Infrared Protection: maximum protection at any shade level
- Operating temperature: -10°C to + 70°C / 14°F to 158°F
- Storage temperature: -20°C to + 80°C / -4°F to 176°F
- Weight: 530 g / 18,7 oz
- Scope of delivery: Welding helmet, manual, storage bag, Micro USB cable, warranty card and one front cover lens
- Warranty: 2 years, 1 year warranty extension (except batteries) for online product registration within the first 6 months.
